A GUIDE TO CLEAN DUST CHOKED IN BETWEEN HEATSINK & FAN of Acer Aspire 4937G laptop
this is a guide to those ppl using Acer Aspire 4937G laptop..n who experience laptop jus shut off when playing game. this one is suitable for those who knows wat they r doing. will not be responsible for any damage u did to your laptop.
ok..lets start by turnin yr laptop upside down.

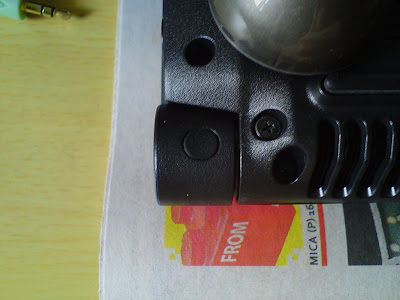

than remove the side cap rubber pad tat hidden the screw. do the same for the other side.
now u can c the screw for the cap. so remove the screw. (dont mix these 2 screws)
slowly slide it out.
side cap removed.
unlock the batt..
remove those screw circled.
(the below 2 pic of 2 screws is different from those above as they r longer)
(below 4 screws r the same, but these 4 r also different from above 2 sets.)
a zoom in of where the screw is...
after removing the 6 screws. turn over n open the lcd screen.
same for both side
slowly "pluck" it up.. n open slowly from left to right.
slightly pull up the tape n remove 2 speaker screws. than remove the speaker. be careful of the cable at the left.
remove the keyboard.
jus lift up the keyboard. DONT lift up by the key! or else u will pluck the key out.
u might wan to lift n move side by side. as u can c both side there is a hook holding to the keyboard.
move the keyboard forward, n u can c the cable attached.
now to remove the cable, either use a tool in the pic or by hand. but jus be gentle by slowly push up both side colour in black.

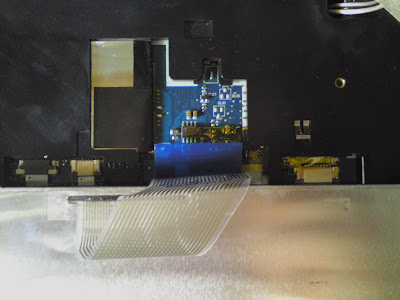

turn over the keyboard towards u. than remove the cable by pulling the blue tape which is attached for easy remove n insert.
remove the speaker cable.
speaker removed!
next, hav to remove the 2 lcd cable. as the cable obstruct the hole.
circled in red is the where the dust wil get choke there. thus airflow wont be able to cool the whole heatsink.
finally to use a vacuum cleaner to suck it out!
to fix it back, jus go the reverse way, n u r done!
